Testing Machines
CNC servo-controlled endurance-cum-load testing, load–deflection measurement and profile gauges for springs and suspension parts.
Built by R-Tech
Endurance cum load testing machine
A CNC servo-controlled machine for load and endurance testing of leaf springs, with in-house software that plots the characteristic graphs of the part under test.
| Capacity: | 20 T |
|---|---|
| Control: | CNC servo-controlled |
| Measurement: | Load–deflection, with load, position and displacement sensors |
| Software: | In-house; produces the characteristic graphs of the part |
| Actuator: | Built for long endurance-testing life |
Measurement on the line
Gauges and in-line testing
Gauge
Profile Checking Gauge
A precise parabolic profile gauge designed to measure leaf springs in hot or cold conditions with minimal tolerance.
Max 1600mm · 20
In-line

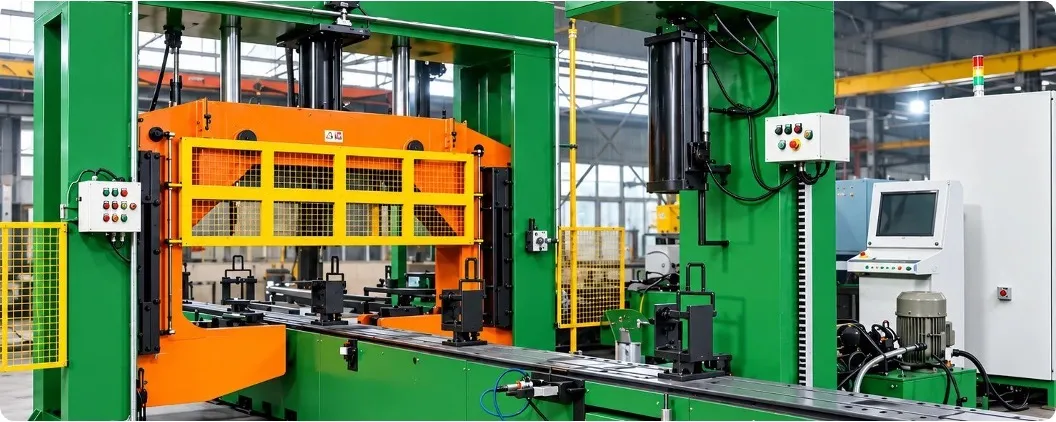

Load–deflection station on the assembly line
50 T precision press with load, position and displacement sensors, integrated in the 18 m automatic assembly line.
Learn More →Supply
Universal testing machines
We also supply universal testing machines from partner manufacturers, with load cells to suit your test range.
Tell us the part, load range and test standard. We will propose the test rig.
