Leaf Spring & Suspension Machines
Machines for every cell of a leaf spring plant: hot forming, cold forming, heat treatment, assembly, rework and testing, with tooling and hydraulics. One partner across the line, from concept to commissioning.
Machines for every cell of a leaf spring plant
Hot Forming
From scale removal to the formed eye: descaling, hot straightening, multi-station pressing, taper rolling and eye rolling.
High-Pressure Water-Jet Descaler
A 300 bar water-jet descaler for descaling before rolling in parabolic leaf spring cells. The same principle is built for forging shops and steel mill…
300 bar · Descaling before parabolic rolling; intermittent descaling

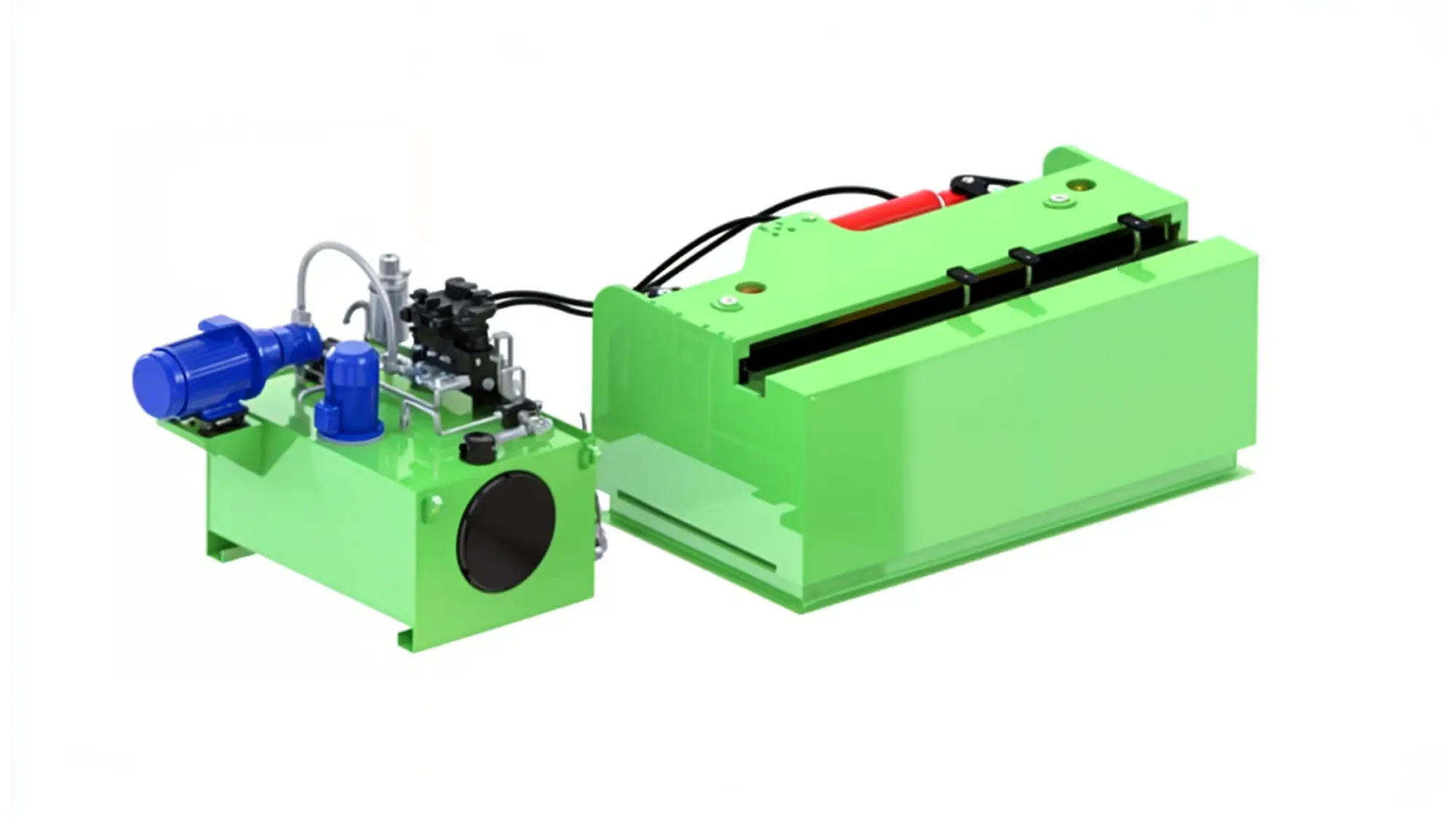

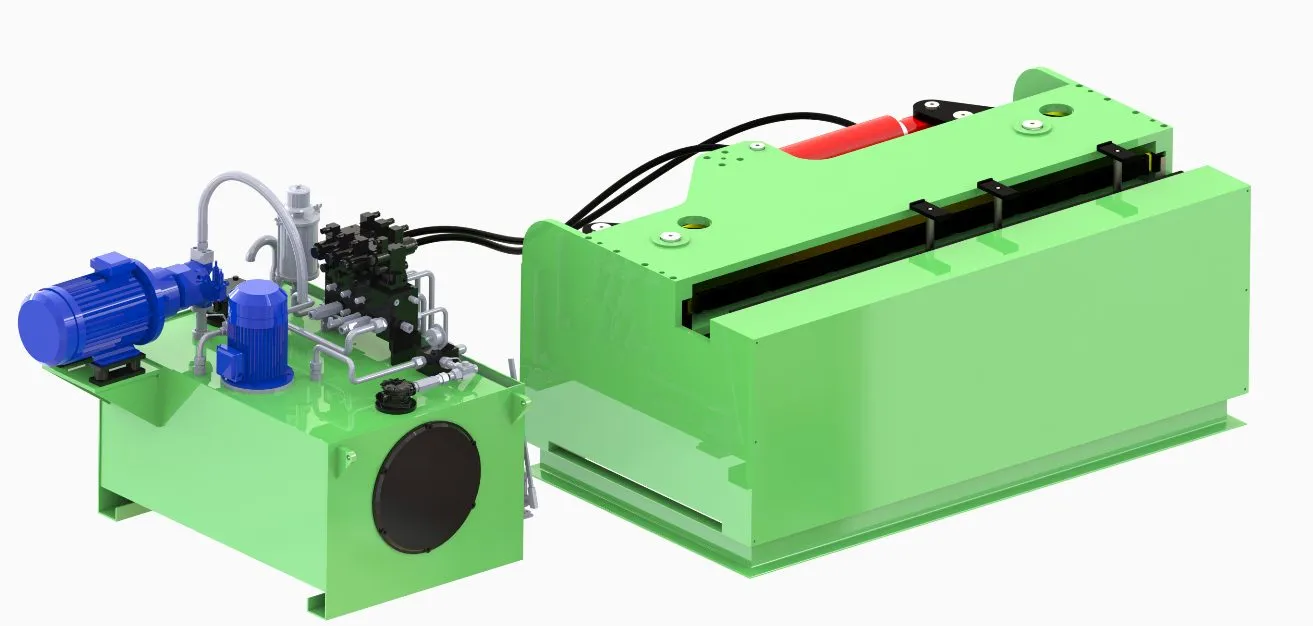

Hot Straightening Press – Parallelogram Type
A 50 T parallelogram-type press for lateral bend correction in hot condition, directly after rolling.
Parallelogram hot straightening press · 50 T

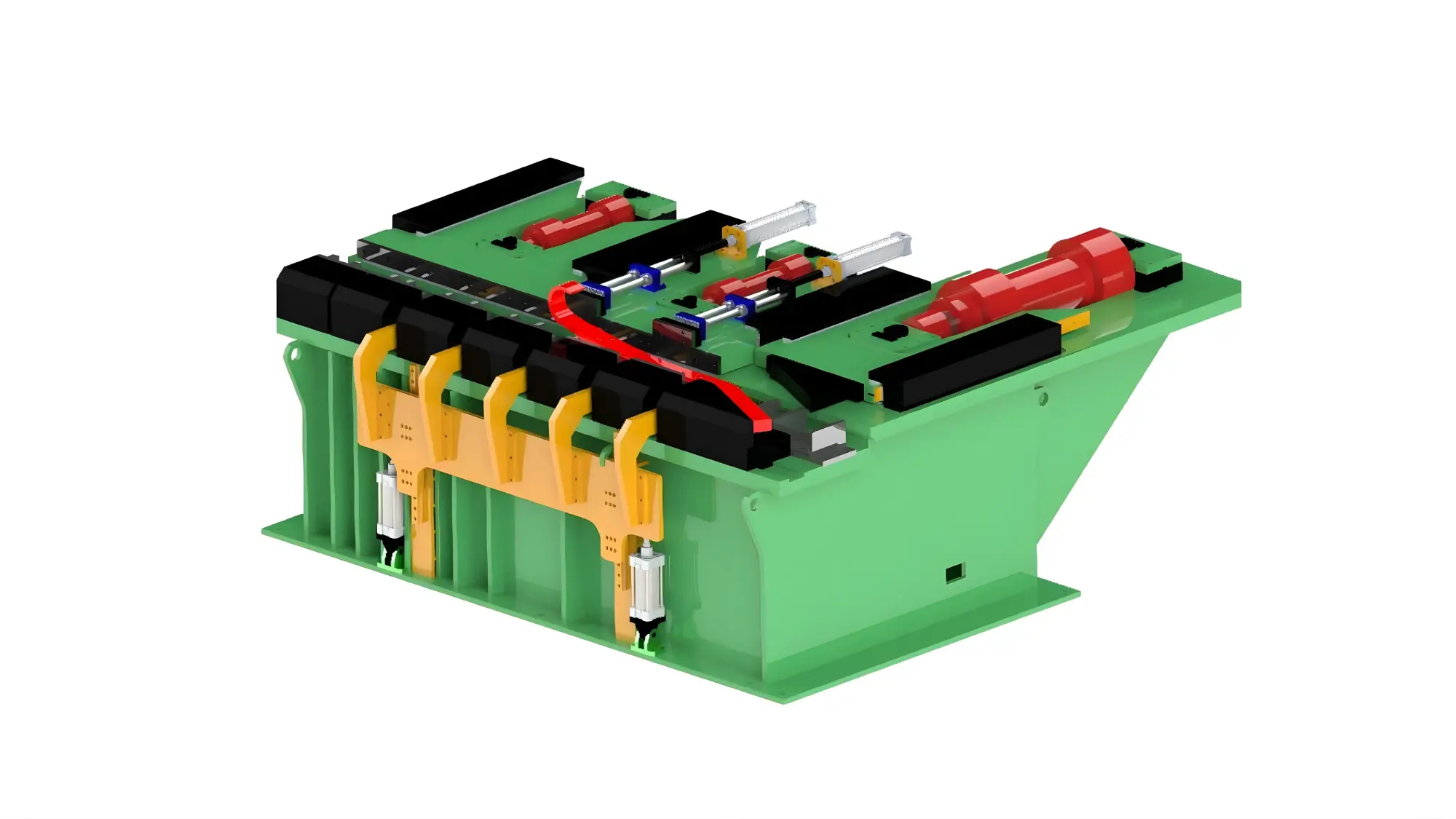

Hockey Bending Press
A precision bending press designed for lateral bend corrections and hockey bending in hot applications.
25+25+50 Tons · Precision sliding

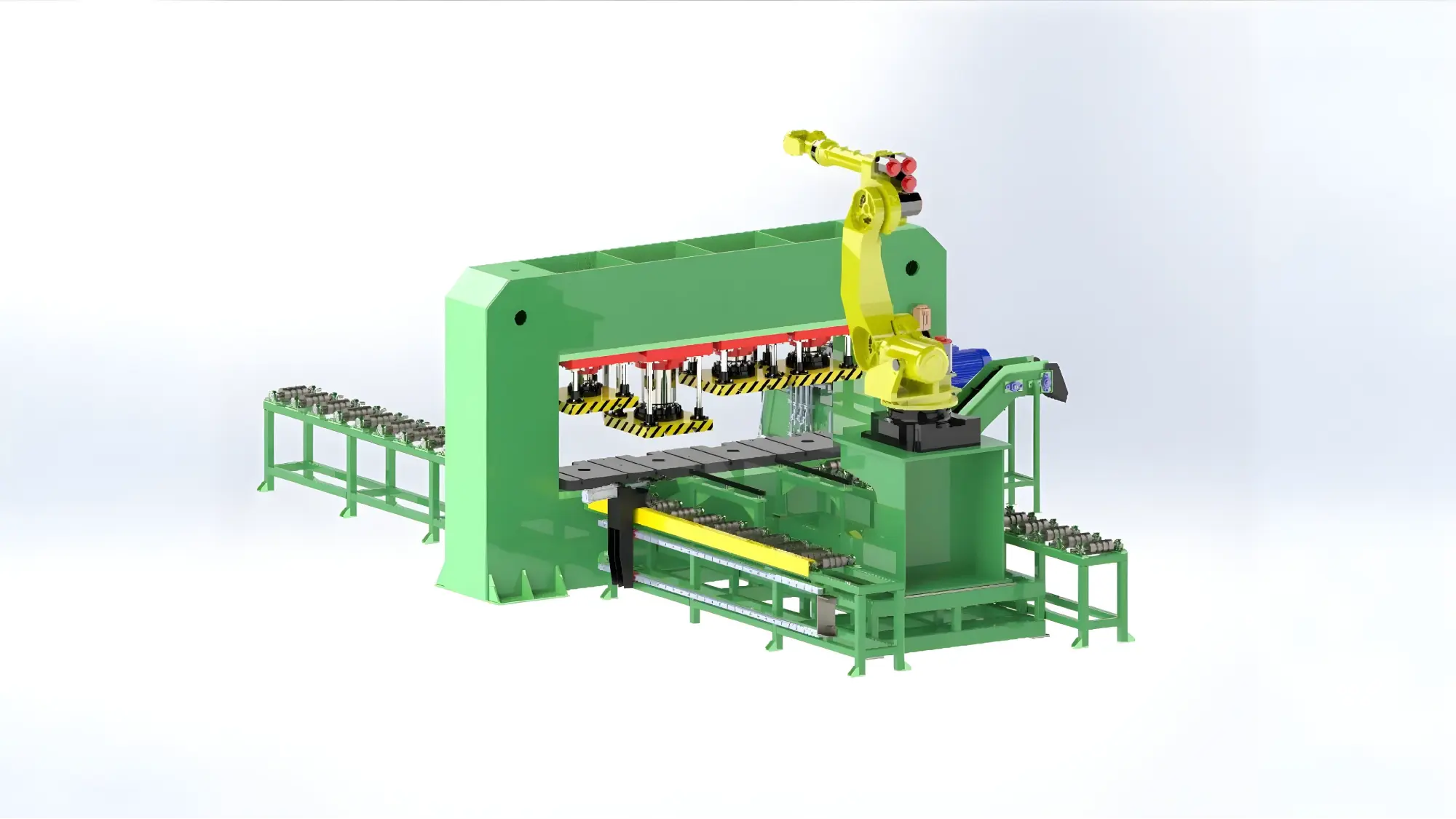

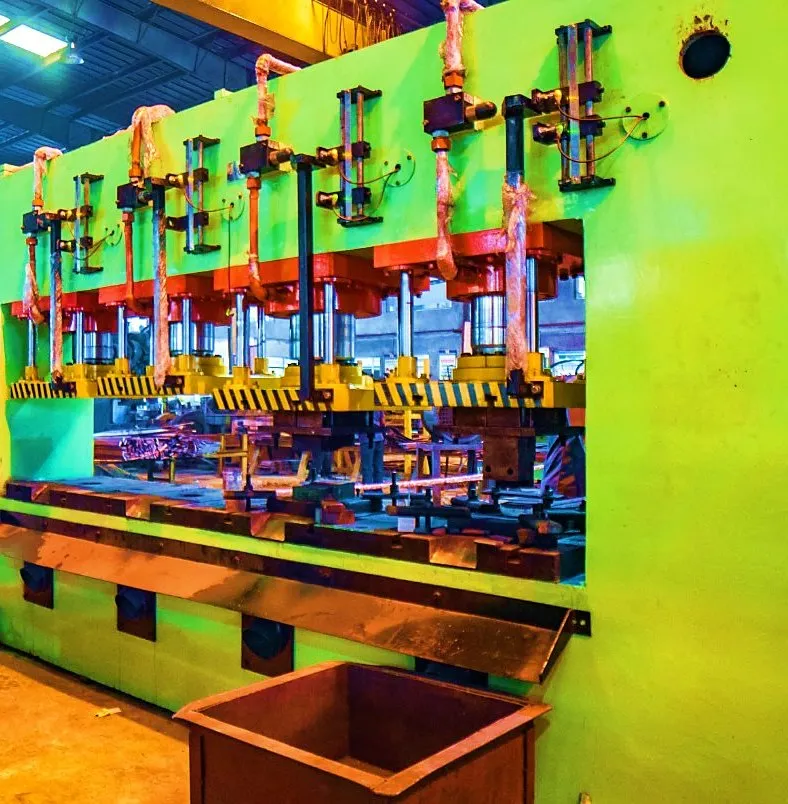

Multi-Station Press
A multi-station press for shearing and centre-hole punching in the parabolic rolling cell, and V-cutting, punching, end cranking and stamping in the h…
2, 3 or 4 stations · Up to 100 / 200 / 100 / 100 T

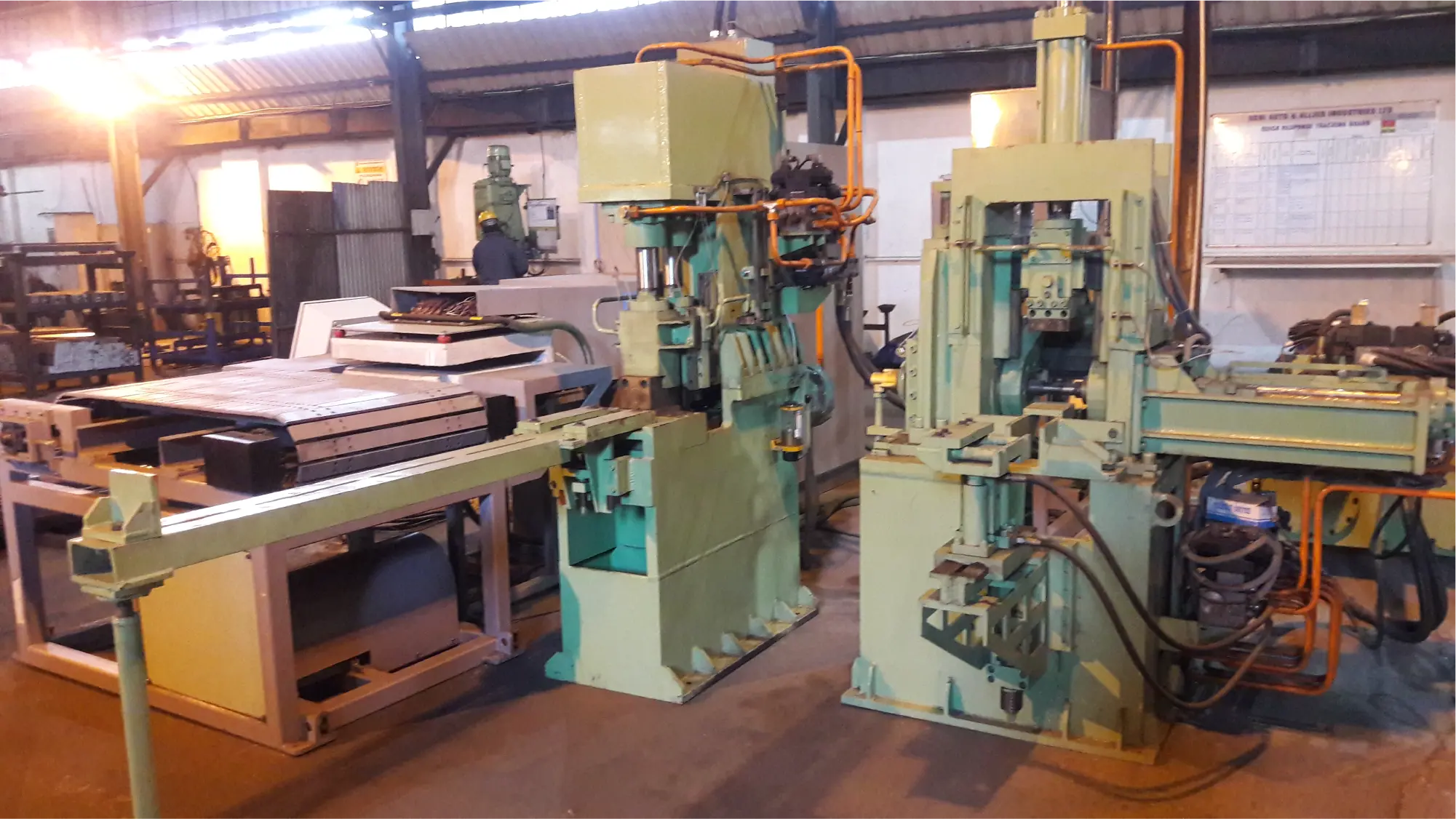

Eye Rolling Machine
A two-stage hot curling machine for leaf spring eyes, for flats up to 25 mm thick.
25 mm · Bending and scarfing

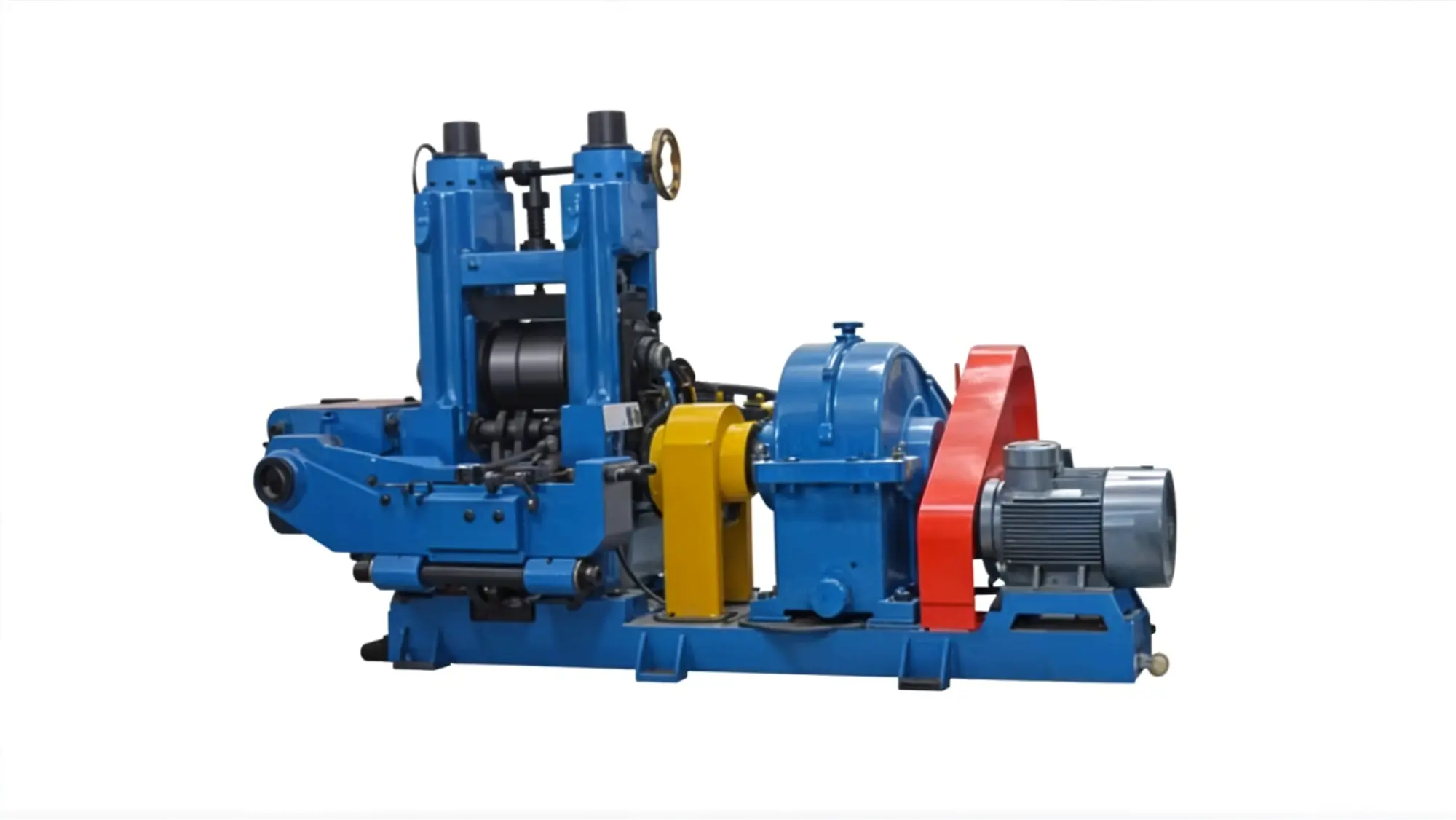

Short Taper Rolling Machine
A high-precision taper rolling machine designed for efficient and accurate processing of leaf springs with advanced hydraulic control.
200 Tons · 6-45mm

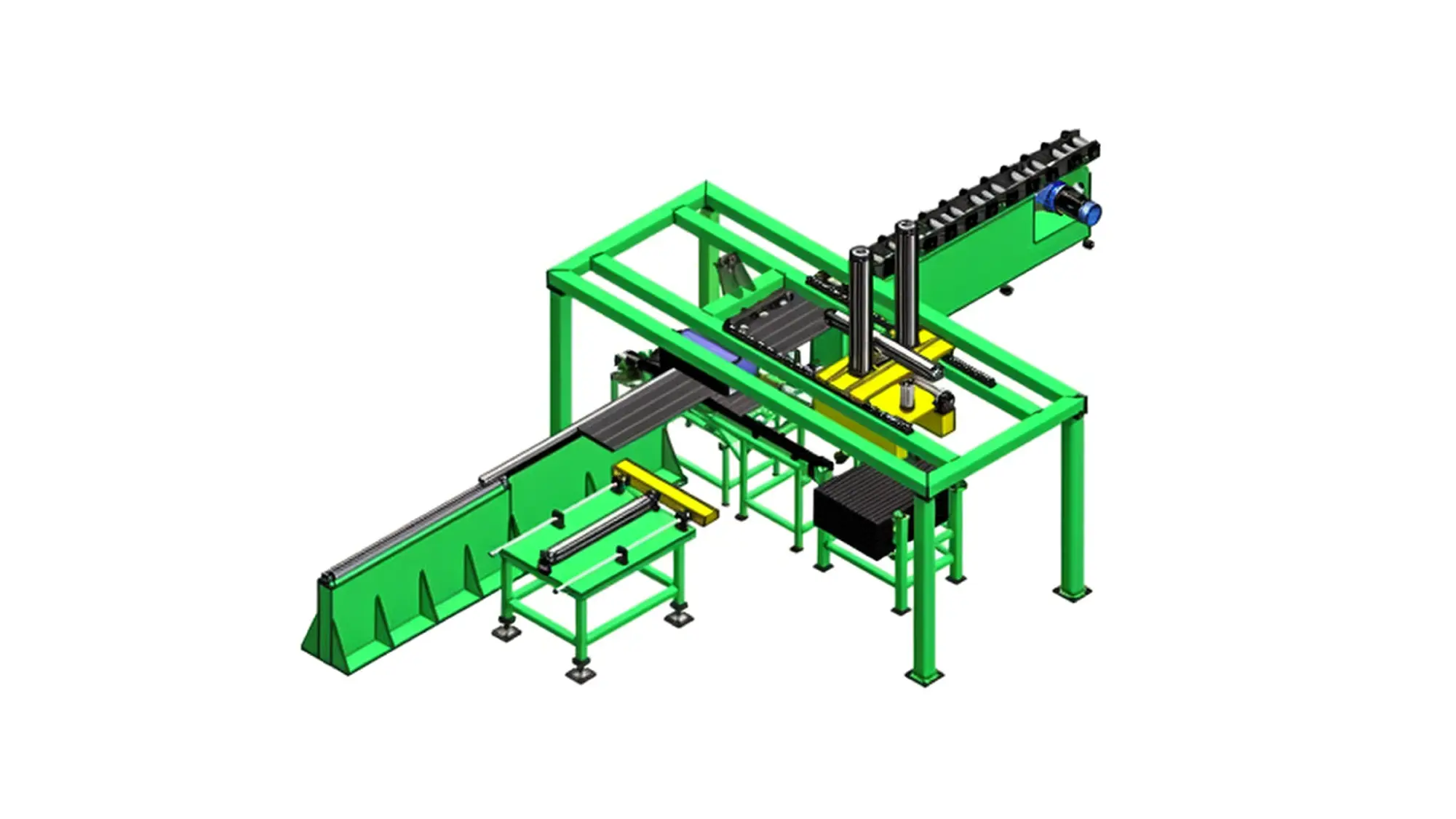

Magnetic Loader
A magneto-pneumatic manipulator designed for efficient handling of heavy stock with minimal manual effort.
500 kg · 500x900mm to 2500x900mm
All descaler types
Rolling-cell, forging-billet and rolling-mill descalers.
Learn More →Cold Forming
The SPVC cell: cold shearing, V-cutting and centre-hole punching of spring blanks.
Heavy-Duty Alligator Shearing Machine – 250 T
A 250 T heavy-duty alligator shear for the cold-forming (SPVC) cell, with hydraulic clamping and a robust, rugged build.
250 T · 100 × 40 mm alloy steel

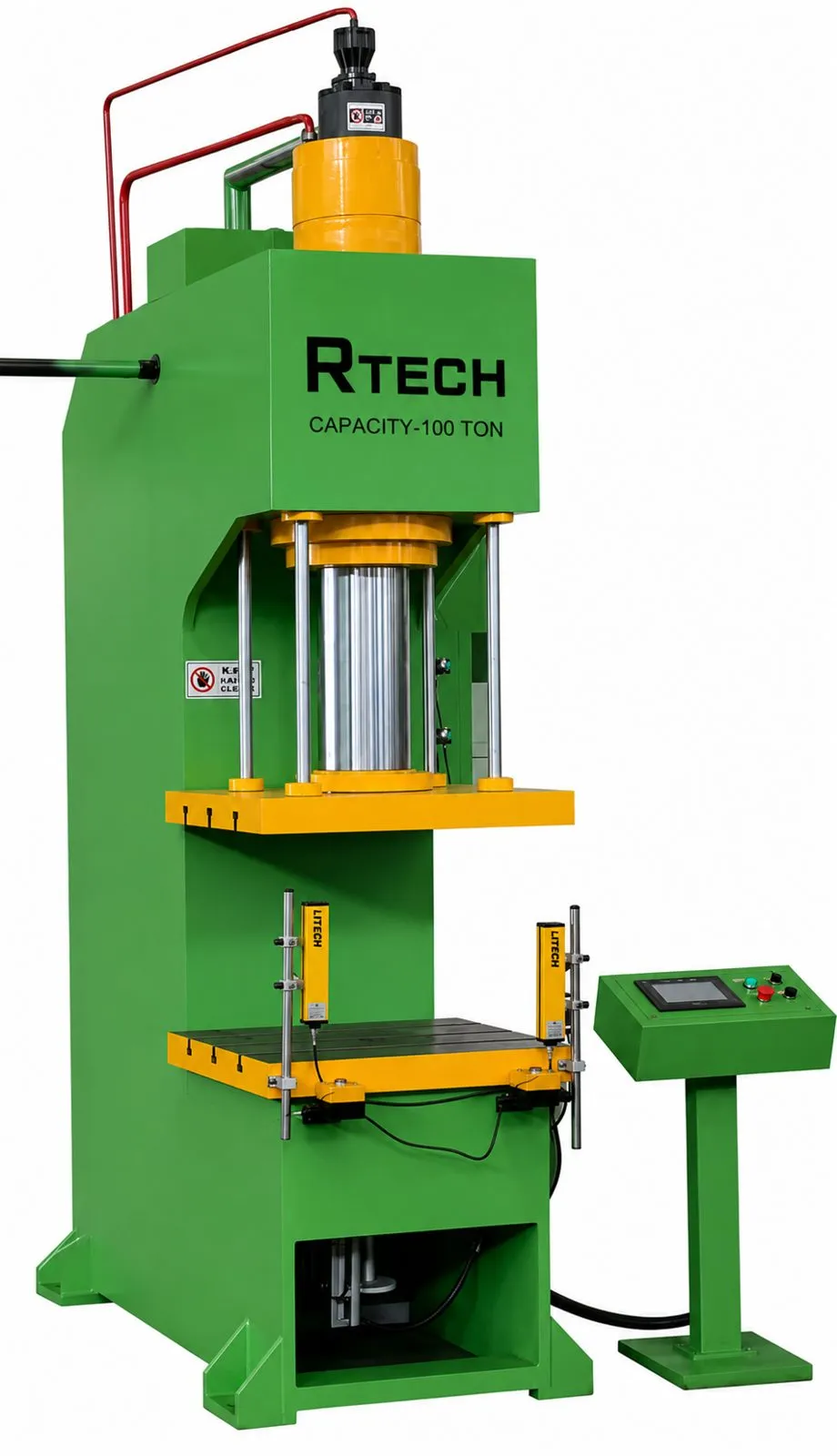

V-cutting, punching and shearing presses
Standard builds for the SPVC cell; capacity, bed and stroke sized to your spring.
Learn More →Heat Treatment
Z-bending of air links, drum cambering and press cambering to your spring profile.

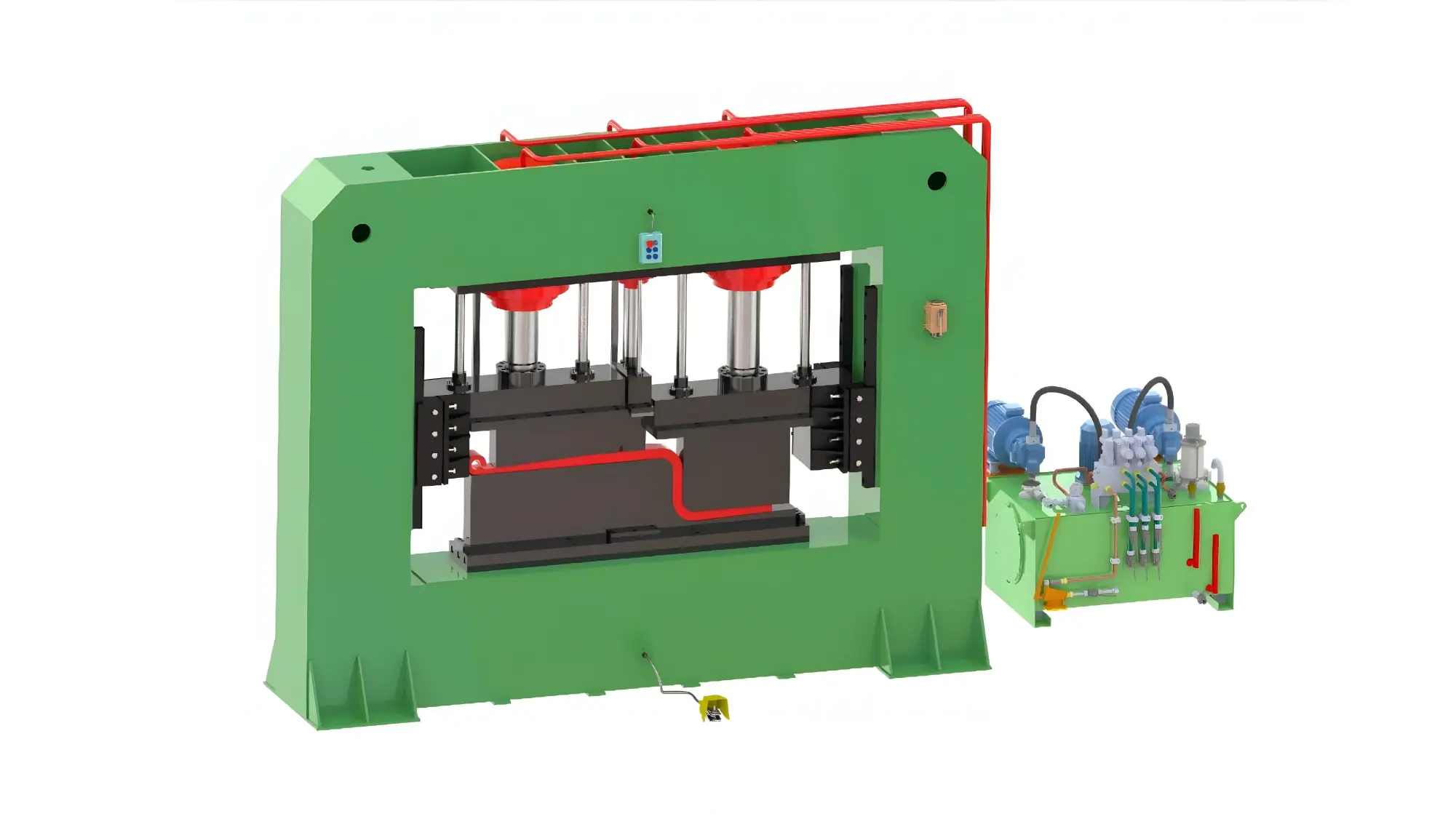

Z Bending Press - Inclined
A high-capacity bending press for heavy-duty hot applications, ensuring consistent performance and precision.
400T (4 cylinders: 150T+100T+100T+50T) · Up to 60mm
Z Bending Press - 3 Cylinder
A robust bending press tailored for hot applications requiring precise and consistent bending capabilities.
350T (150T+150T+50T) · Hot bending
Z-Bending Press for Air Links – 450 T
A 450 T Z-bending press for air links, bending LH and RH air links on one machine.
450 T · Up to 70 mm

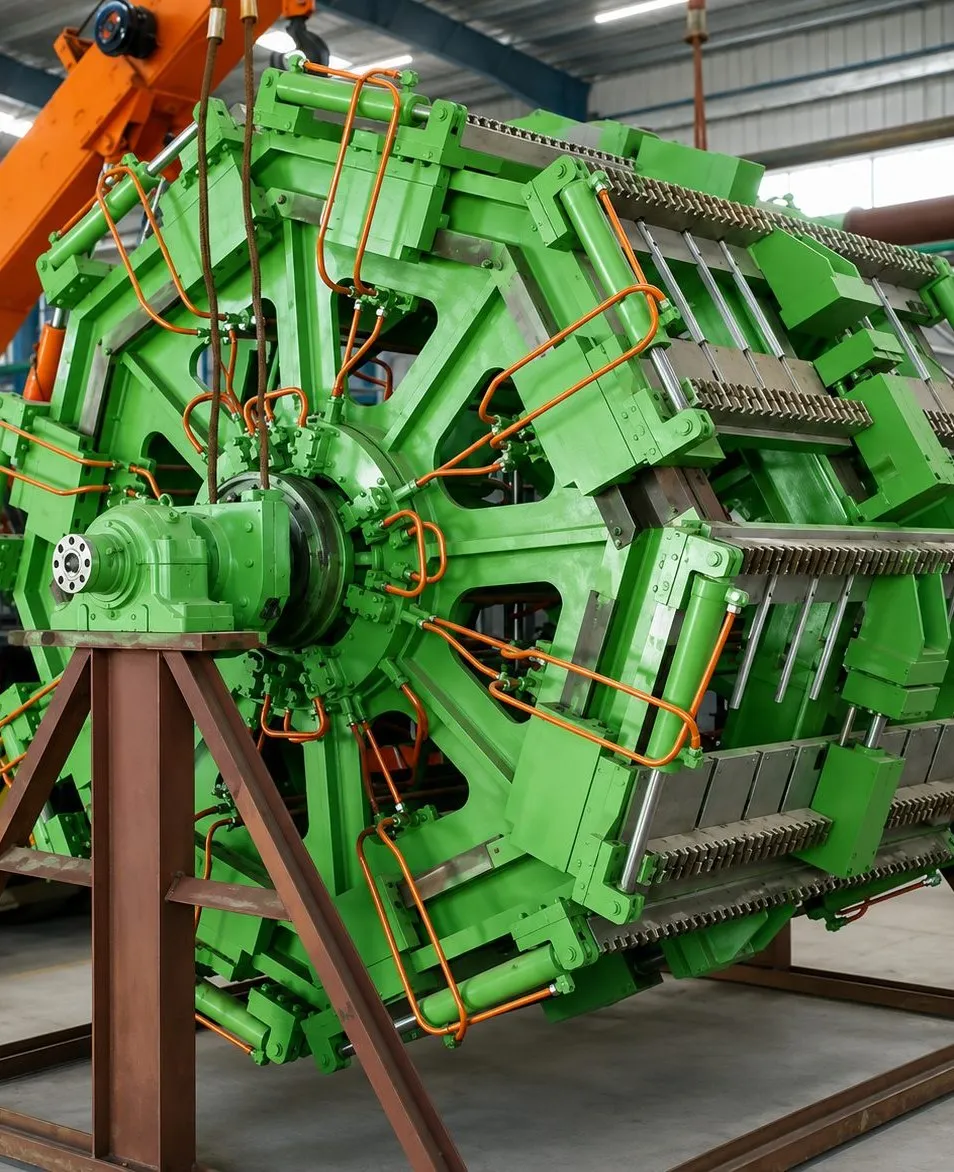

Drum Cambering Machine
An 8-station drum cambering machine with central clamping for single leaves.
8, with central clamping · Up to 250 mm
Hydraulic Cambering Presses – 40 to 350 T
Finger-type hydraulic cambering presses built to your spring profile and camber.
40 T to 350 T · Finger-type press cambering
Assembly & Finishing
Stress peening automation, eye machining and fully automatic assembly lines.

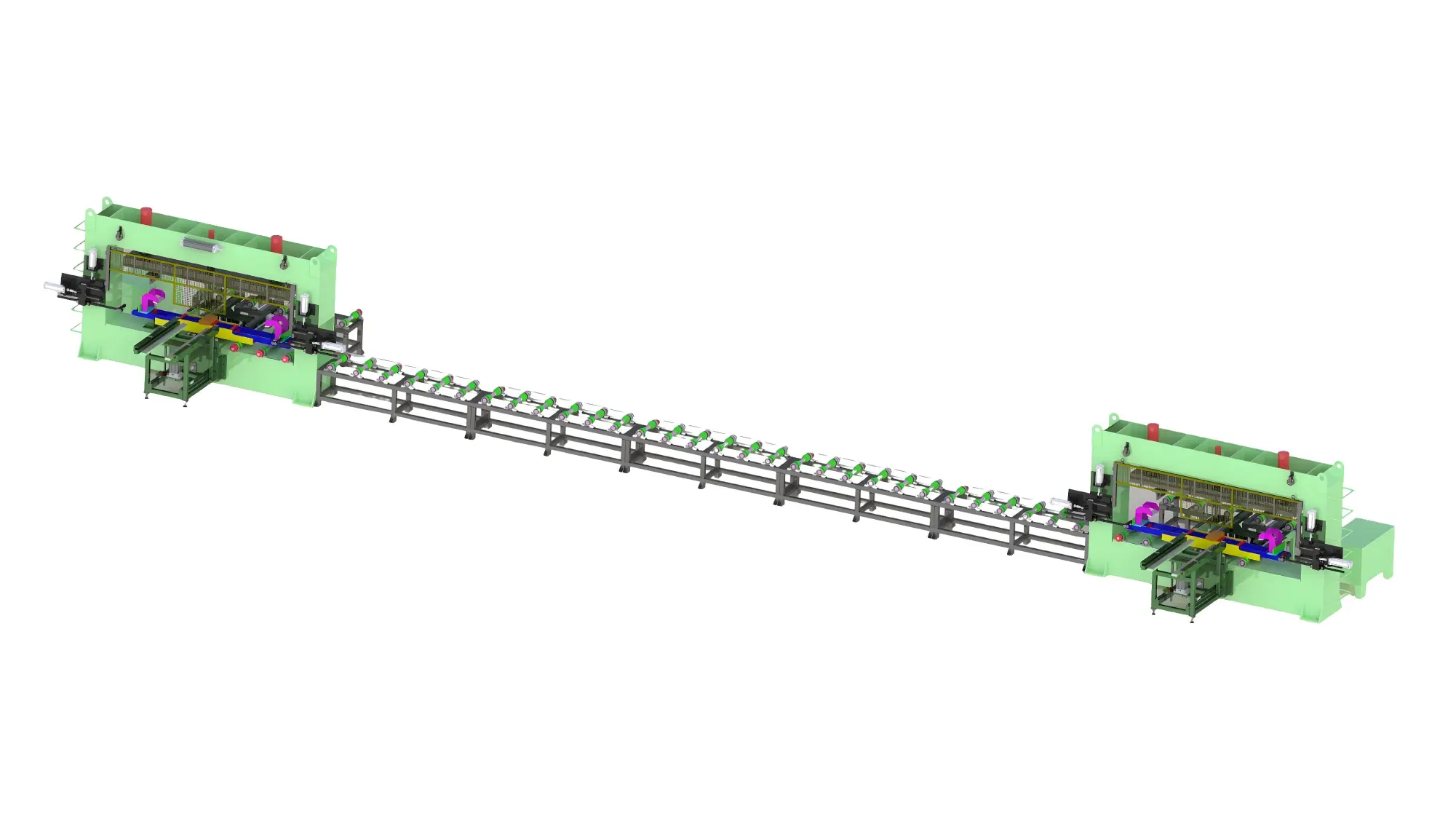

Automation Line with Stress Peening Press
A fully automated and ergonomic stress peening system designed to streamline manufacturing processes with minimal manual interruption.
15+5+15 ton synchronized rams · Fully automated

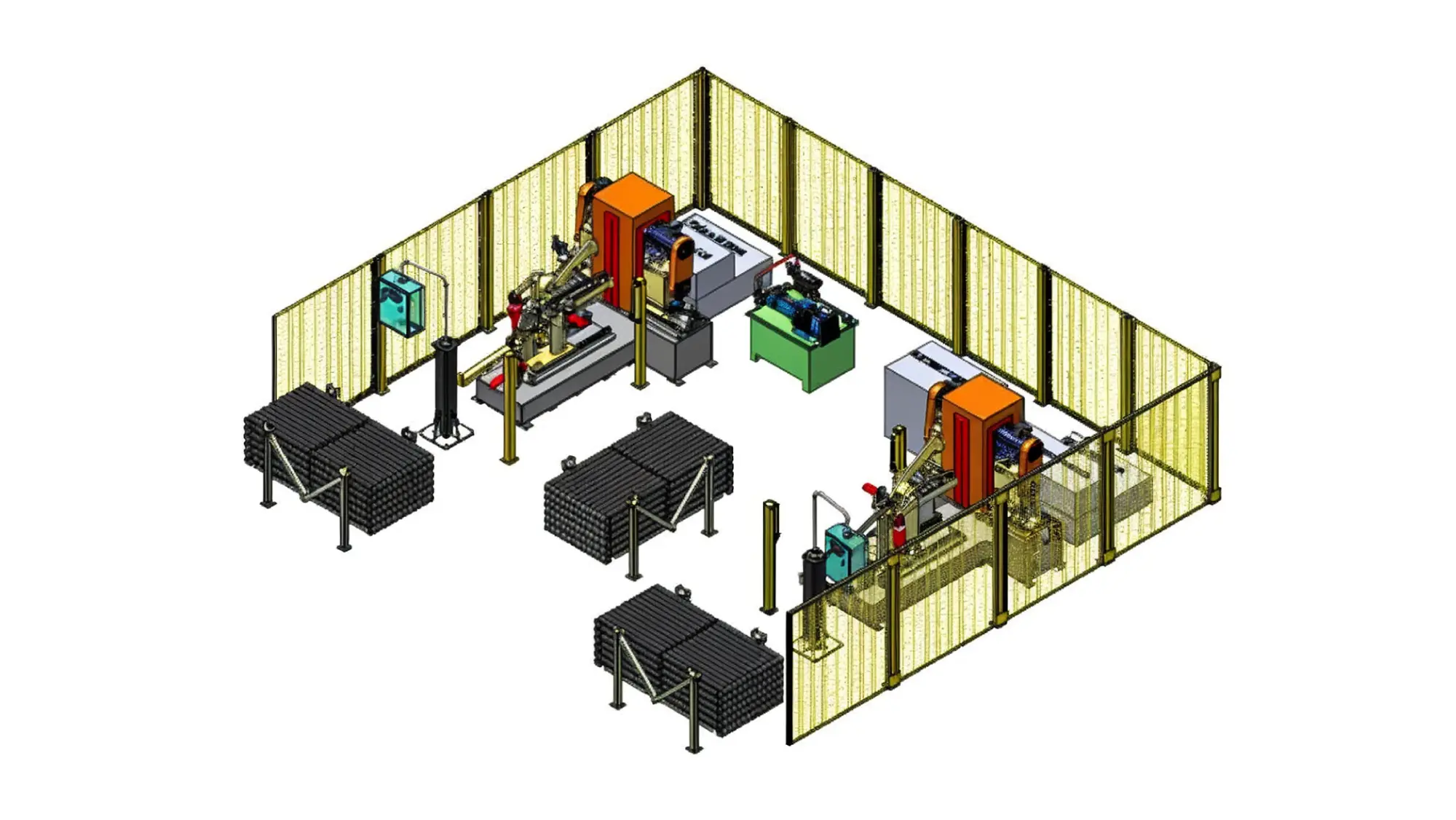

Eye Machining Machine
A precision hydraulic clamping machine designed for grinding, reaming, and milling leaf spring eyes.
120mm · Hydraulic clamping

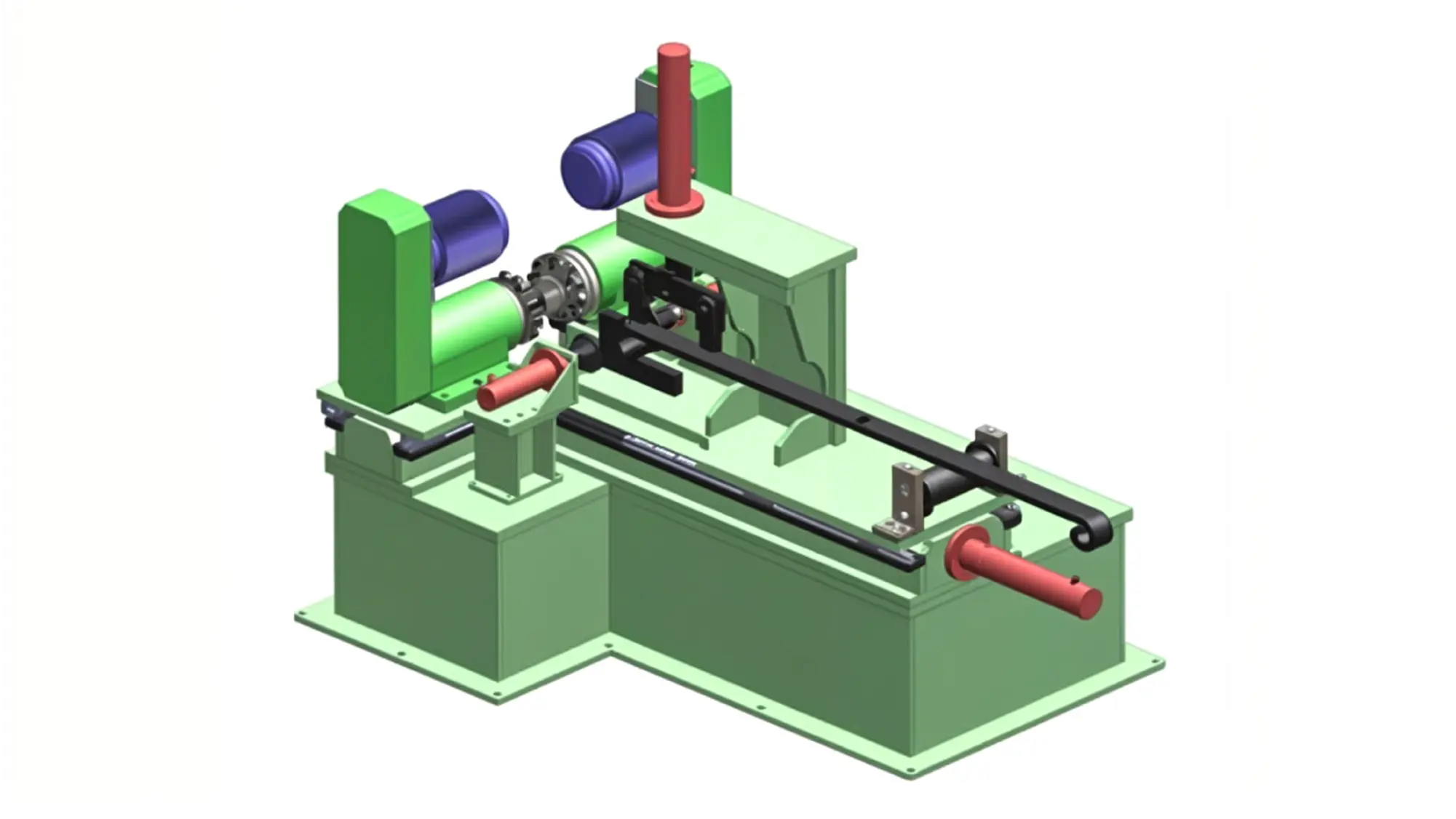

Eye Milling Machine
A specialized milling machine for leaf spring eyes, capable of handling various stock sizes for efficient production.
0.5-2.0mm · 150mm
Eye Reaming Machine
A hydraulic machine designed for precise reaming of leaf spring eyes, ensuring perfect alignment and smooth operation.
20-60mm · Hydraulic

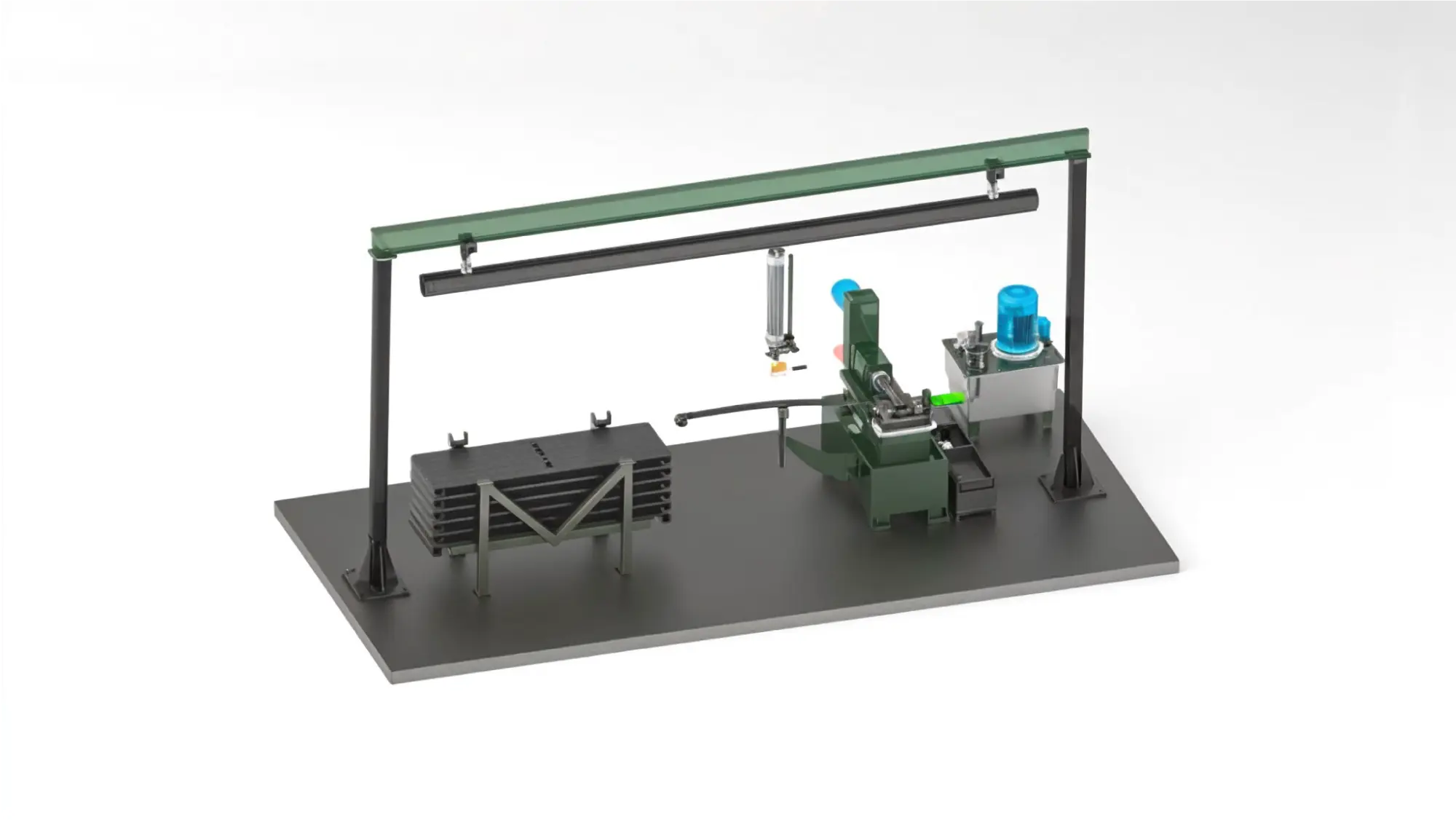

Eye Boring Machine
A specialized boring machine designed for precise and efficient boring of leaf spring eyes with advanced hydraulic control.
20-60mm · Hydraulic

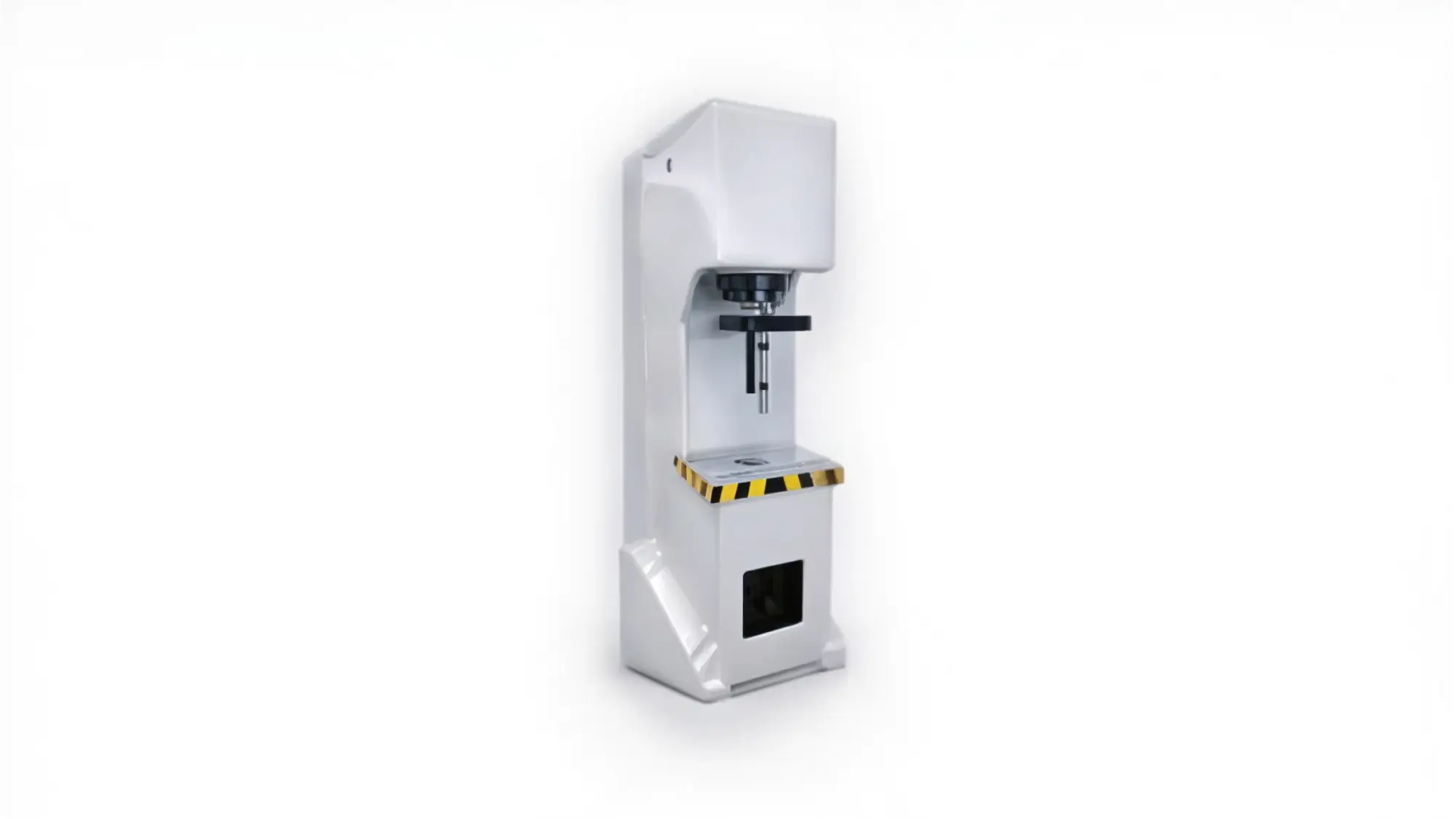

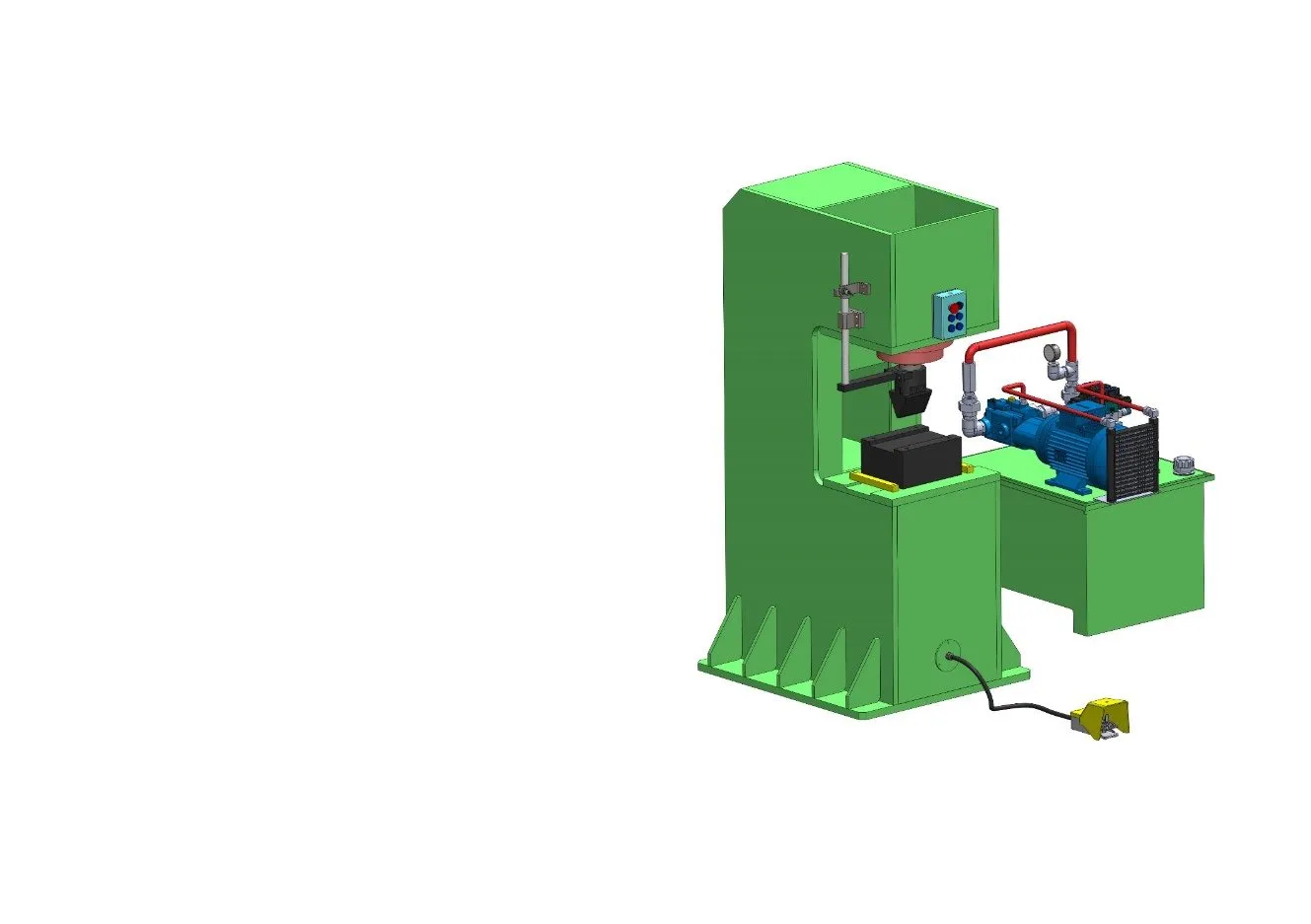

Bush Pressing Machine
A hydraulic press specifically designed for pressing bushes into leaf springs with precision and consistency.
10 Tons · 400mm
Heavy Assembly Line Machine
A fully integrated assembly line designed for automotive suspension systems, ensuring high precision and operational efficiency.
50 tons · 18 meters (conveyorized line)
Assembly Benches & Rework
Assembly benches, correction presses for re-cambering and bend correction, and straightening.

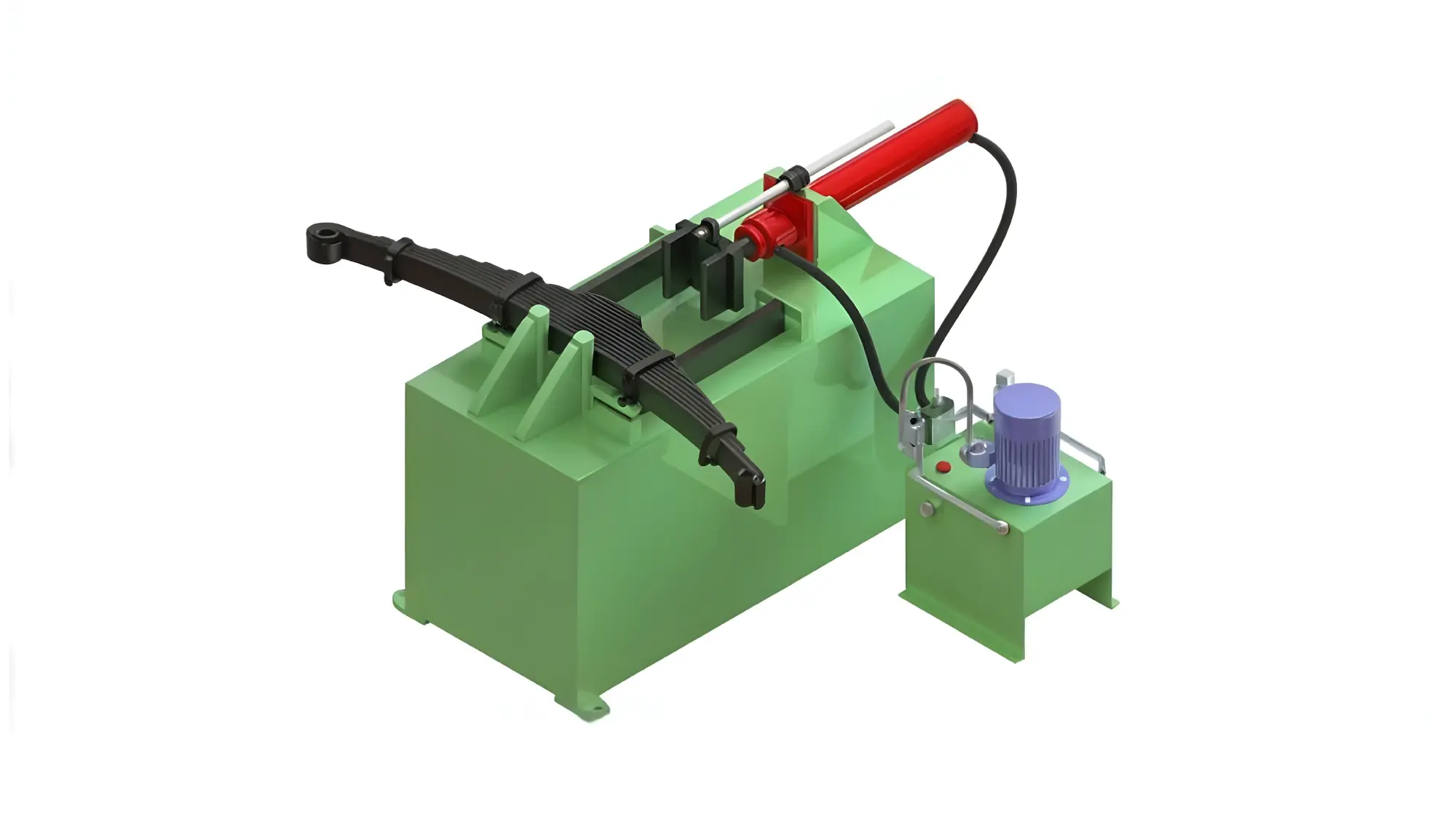

Leaf Spring Assembling Machine
A specialized hydraulic machine designed for assembling leaf spring components with high accuracy and efficiency.
5T, 10T, 20T · All-steel fabrication

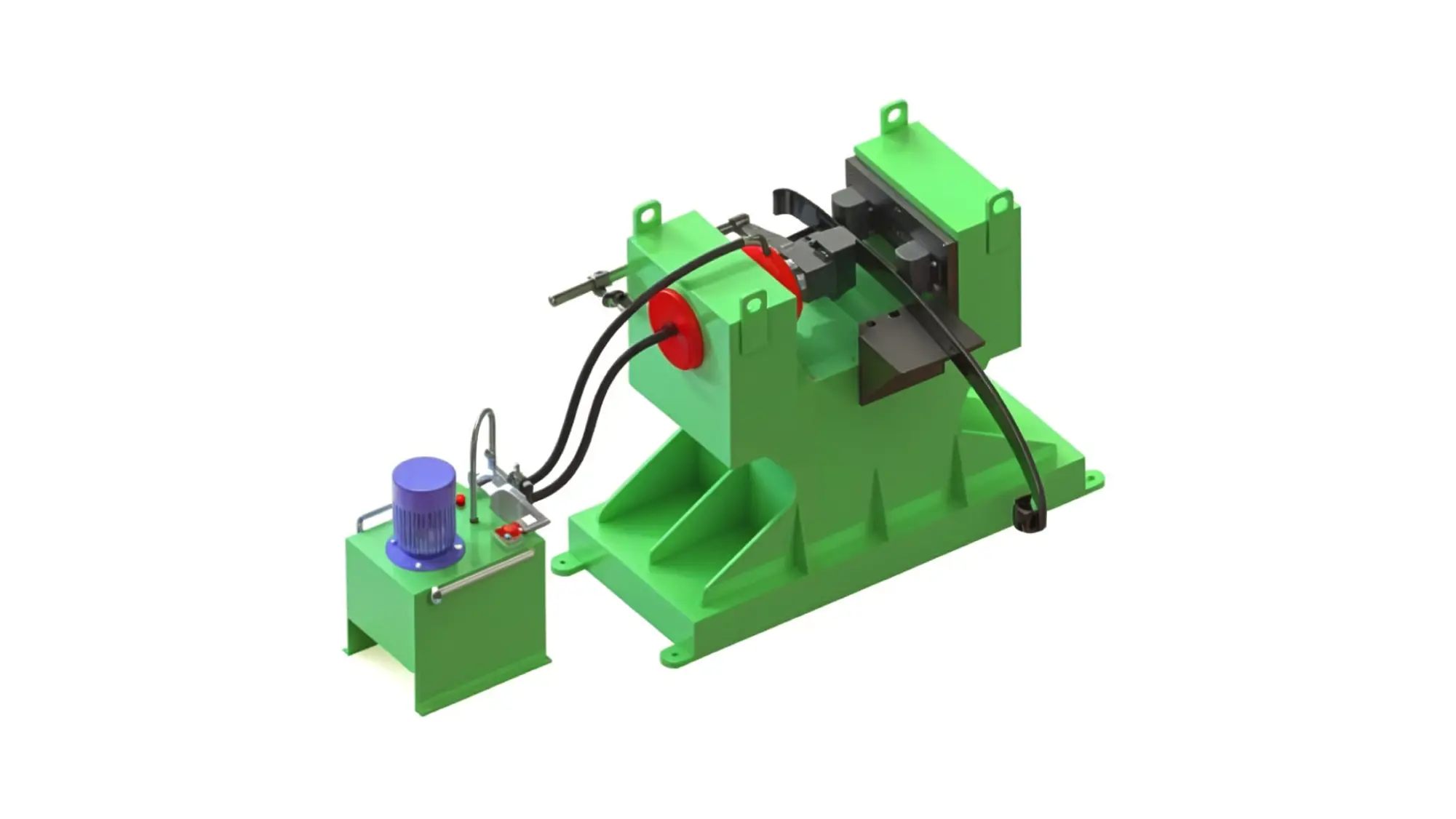

Leaf Spring Correction Press
A hydraulically operated press for re-cambering and lateral bend correction in leaf spring manufacturing.
15T, 25T, 40T, 60T · Hydraulic system

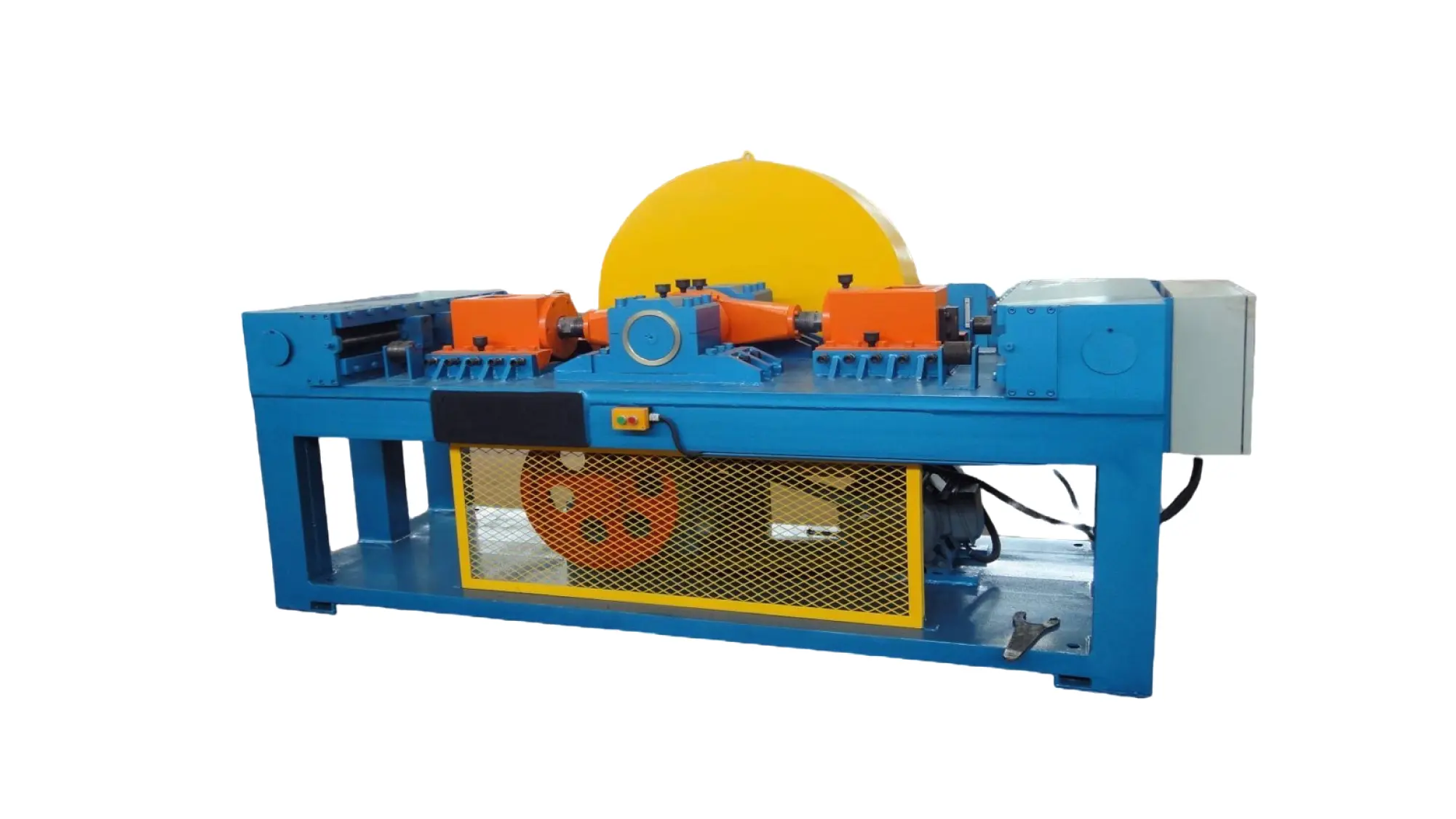

Mechanical Straightening Machine
A robust machine for precise straightening of leaf springs, enhancing durability and alignment.
180 Tons · 22KW
Testing
Load-cum-endurance testing and profile checking.
Endurance Cum Load Testing Machine
A CNC servo-controlled machine for load and endurance testing of leaf springs, with in-house software that plots the characteristic graphs of the part…
20 T · CNC servo-controlled

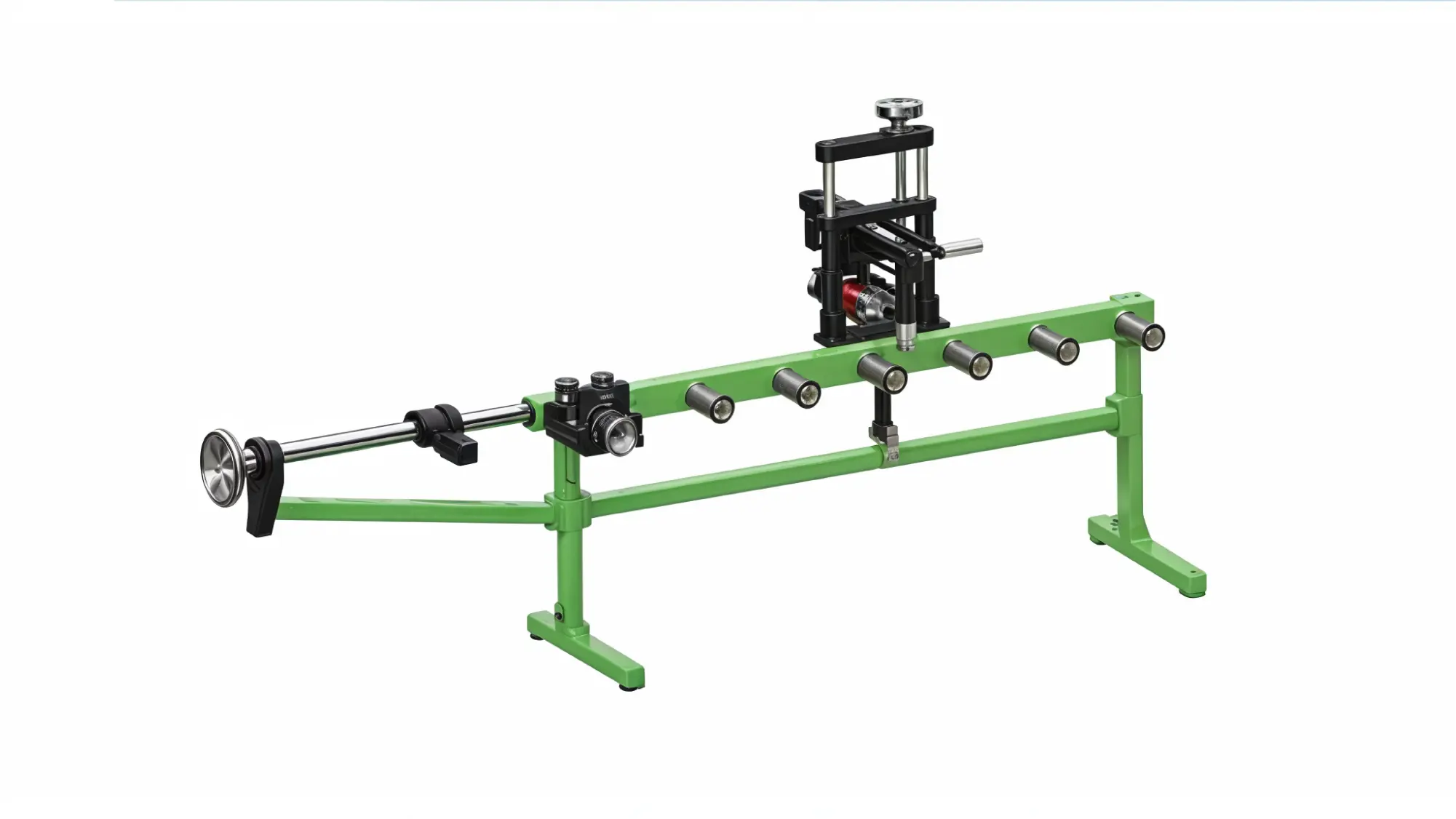

Profile Checking Gauge
A precise parabolic profile gauge designed to measure leaf springs in hot or cold conditions with minimal tolerance.
Max 1600mm · 20
Tooling and hydraulics for the line
Rollers, press tools and dies
Two-piece parabolic rollers and press tooling in imported tool steels.
Learn More →
Power packs, cylinders and repair
Built to the machine duty; troubleshooting and repair.
Learn More →
Robot cells and automation lines
Robot-loaded cells and automatic assembly and press lines.
Learn More →Send us your component drawing and required output. We will propose the machine.
Discuss Your Requirement →
