Forging Machines & Automation
The equipment around the forging press: billet descaling, automatic die graphite spraying, induction heating automation and presses up to 750 T.
Around your forging press
One partner for the equipment around the press
Supplied, integrated and supported from Indore.
Die lubrication

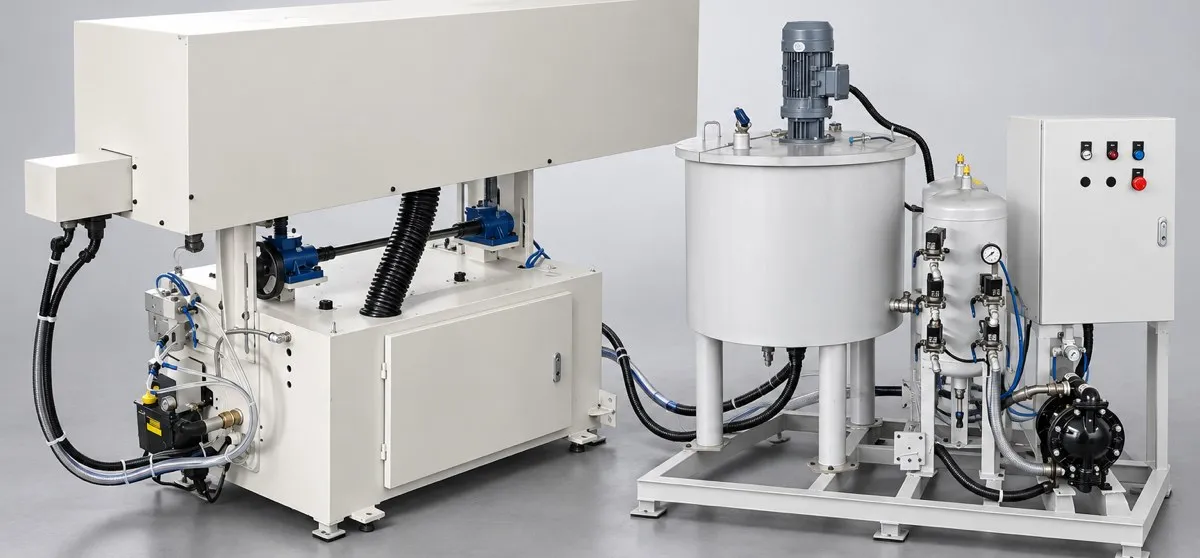

Automatic die graphite spraying system
- Servo spray arm enters the open die every cycle, sprays and retracts clear of the press
- Air blow-off removes scale from the bottom die before graphite is applied
- Separate top-die and bottom-die circuits, each with its own flow and pressure setting
- Air-atomised fan nozzles for an even, repeatable film
- Stirred graphite station keeps graphite in suspension; nozzle-line flushing prevents clogging
- Mobile, height-adjustable base rolls away for die change
AnyPress capacity
1,000 mmArm stroke
8 + 2Spray + air-blow nozzles
200 LStirred graphite station
Image for pictorial purpose only; actual machine may vary.
Billet descaling
Forging and rolling-mill descalers
Forge shops
Forging billet descaler
Ø20–80 mm and up to Ø200 / 200 mm square; 17–35 bar; stainless-steel body and conveyor.
All descalers →
Rolling mills
Rolling-mill billet descaler
Billets up to 250 × 250 mm, 1–12 m long.
All descalers →
Presses

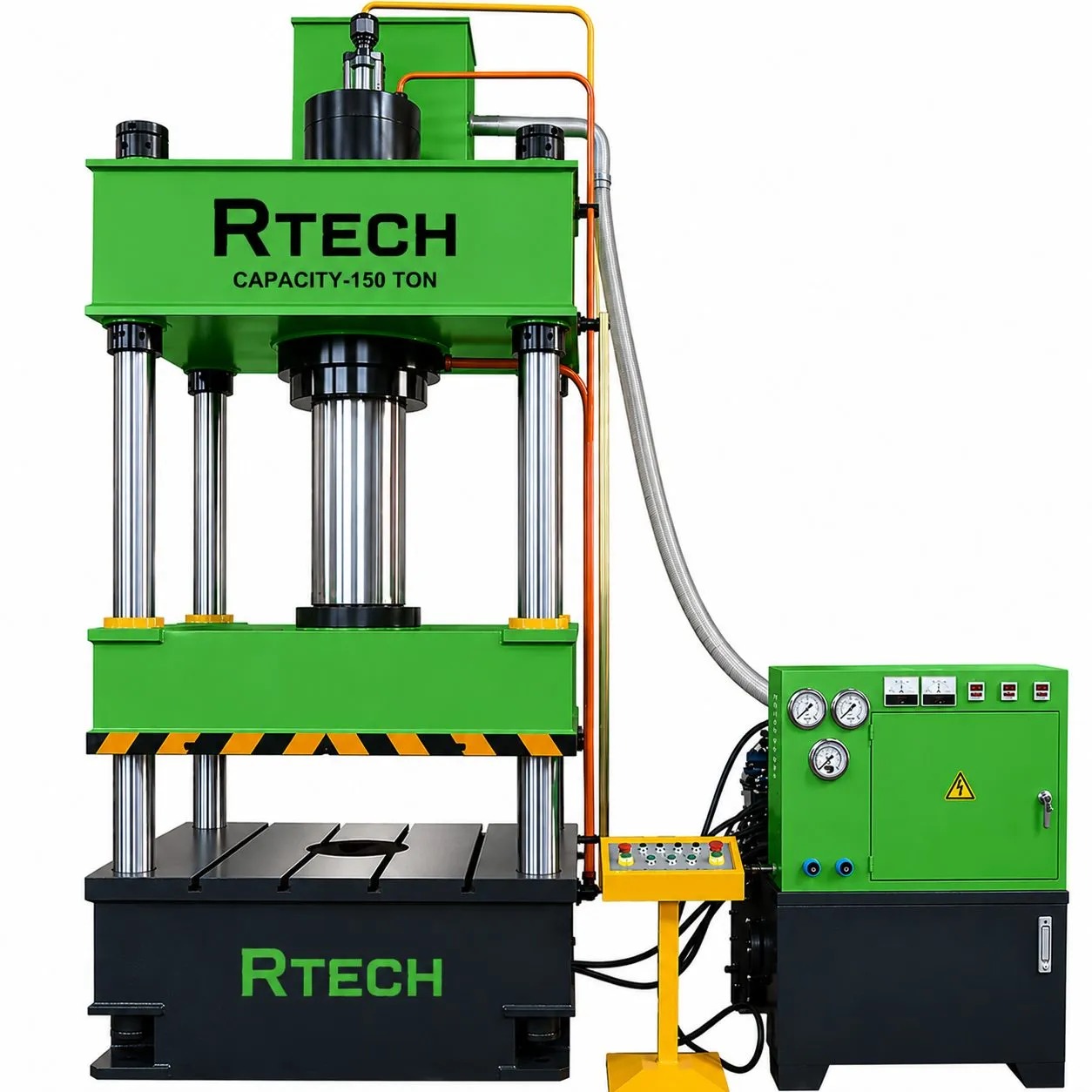

Hydraulic presses up to 750 T
Standard or custom-built forging and trimming presses.
Hydraulic presses →Send us your component drawing and required output. We will propose the machine.
Discuss Your Requirement →
